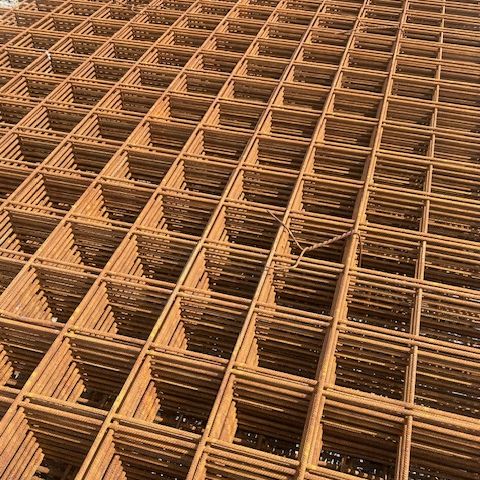

Fabric Reinforcement
Fabric reinforcement mesh from The Roe Group is manufactured in accordance with BS4483, using cold reduced wire that meets the requirements of BS4482. As standard, we supply Type 2 ribbed wire, recognised by BS8110 for its enhanced bond strength. Each wire intersection is precisely resistance welded using advanced electronically controlled processes, ensuring consistent quality and structural reliability.
- Standard Sheets are 4.8 x 2.4m. (Also available 3.6 x 2.0m merchant size sheets - see below).
- Standard and merchant size sheets are available ex stock.
- When ordering non-standard sheets, the main wire length should be the first dimension stated.
STANDARD SIZES (4.800 x 2.400) |
|||||||||||
| BS Reference |
Mesh Size Nominal Pitch of Wires |
Wire Sizes | Cross Sectional Area per Metre Width |
Nominal Weight per m2 (kg) |
Sheets per Tonne (approx) |
Sheet Weight (kg) |
Sheets per Bundle |
Sq Metres per Tonne |
|||
| Main (mm) | Cross (mm) | Main (mm) | Cross (mm) | Main (mm) | Cross (mm) | ||||||
| A393 | 200 | 200 | 10 | 10 | 393 | 393 | 6.16 | 15 | 70.96 | 18 | 162.34 |
| A252 | 200 | 200 | 8 | 8 | 252 | 252 | 3.95 | 22 | 45.50 | 28 | 253.16 |
| A193 | 200 | 200 | 7 | 7 | 193 | 193 | 3.02 | 29 | 34.79 | 34 | 331.13 |
| A142 | 200 | 200 | 6 | 6 | 142 | 142 | 2.22 | 40 | 25.57 | 46 | 450.45 |
| B1131 | 100 | 200 | 12 | 8 | 1131 | 252 | 10.90 | 8 | 125.57 | 10 | 91.74 |
| B785 | 100 | 200 | 10 | 8 | 785 | 252 | 8.14 | 11 | 93.57 | 14 | 122.85 |
| B503 | 100 | 200 | 8 | 8 | 503 | 252 | 5.93 | 15 | 68.31 | 18 | 168.63 |
| B385 | 100 | 200 | 7 | 7 | 385 | 193 | 4.53 | 20 | 52.19 | 24 | 220.75 |
| B283 | 100 | 200 | 6 | 7 | 283 | 193 | 3.73 | 24 | 42.97 | 30 | 268.10 |
| C785 | 100 | 400 | 10 | 6 | 785 | 70.8 | 6.72 | 13 | 77.41 | 16 | 148.81 |
| C636 | 100 | 400 | 9 | 6 | 636 | 70.8 | 5.55 | 16 | 63.94 | 20 | 180.18 |
| C503 | 100 | 400 | 8 | 5 | 503 | 49.0 | 4.34 | 20 | 50.00 | 26 | 230.41 |
| C385 | 100 | 400 | 7 | 5 | 385 | 49.0 | 3.41 | 26 | 39.28 | 30 | 293.26 |
| C283 | 100 | 400 | 6 | 5 | 283 | 49.0 | 2.61 | 34 | 30.07 | 32 | 383.14 |
| D98 | 200 | 200 | 5 | 5 | 98.0 | 98.0 | 1.54 | 57 | 17.74 | 60 | 649.35 |
| D49 | 100 | 100 | 2.5 | 2.5 | 49.1 | 49.1 | 0.77 | 113 | 8.87 | 50 | 1298.70 |
MERCHANT SIZES (3.600 x 2.000) |
|||||||||||
| BS Reference |
Mesh Size Nominal Pitch of Wires |
Wire Sizes | Cross Sectional Area per Metre Width |
Nominal Weight per m2 (kg) |
Sheets per Tonne (approx) |
Sheet Weight (kg) |
Sheets per Bundle |
Sq Metres per Tonne |
|||
| Main (mm) | Cross (mm) | Main (mm) | Cross (mm) | Main (mm) | Cross (mm) | ||||||
| A393 | 200 | 200 | 10 | 10 | 393 | 393 | 6.16 | 23 | 44.35 | 26 | 162.34 |
| A252 | 200 | 200 | 8 | 8 | 252 | 252 | 3.95 | 35 | 28.44 | 30 | 253.16 |
| A193 | 200 | 200 | 7 | 7 | 193 | 193 | 3.02 | 46 | 21.74 | 50 | 331.13 |
| A142 | 200 | 200 | 6 | 6 | 142 | 142 | 2.22 | 63 | 15.98 | 50 | 450.45 |
