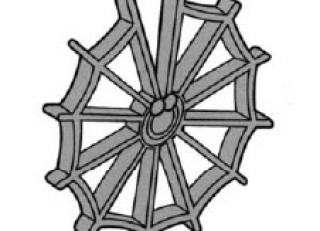

Mainly used in walls, columns, etc. Designed to ensure that when clipped onto bar, correct cover is maintained should the spacer move. The “H” range is heavy duty.
Code (circ) | Cover (mm) | Bar Diam (mm) | Std Pack |
CPS15 | 15 | 6-12 | 1000 |
CPS20 | 20 | 6-12 | 500 |
CPS25 | 25 | 6-12 | 500 |
CPS30 | 30 | 6-12 | 250 |
CPS35 | 35 | 6-12 | 200 |
CPS40 | 40 | 6-12 | 125 |
CPS50 | 50 | 8-12 | 250 |
CPSH50 | 50 | 12-20 | 250 |
CPSH60 | 60 | 12-20 | 100 |
